進口不銹鋼水用減壓閥

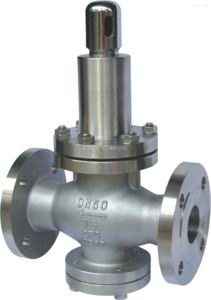

一、進口不銹鋼水用減壓閥概述
品牌：美國歐可OKE
進口不銹鋼水用減壓閥stainless steel water water pressure reducing valve，是指閥體采用不銹鋼304或者316材質，具有耐酸堿，耐腐蝕，耐生銹的功能，強度好，韌性強，能有效高精度的減壓穩壓的閥門。
進口不銹鋼水用減壓閥主要用于各種建筑給水系統、消防系統、中央空調系統、采暖系統等。它用于支管減壓，可使供水壓力分配更加均衡，避免部分供水超壓，優化高層建筑給水分區。進口不銹鋼水用減壓閥可代替分區調頻變速水泵，在消防給水系統上可代替分區水泵，用于家用給水系統，可保護所有的水龍頭和其它水器具。
二、進口不銹鋼水用減壓閥產品特征
1、不銹鋼材質，耐磨，耐腐蝕，耐生銹
2、螺紋連接，連接方便，省材料，性價比高
3、極佳的水力特性，壓力損失小
4、加壓比例大，減壓比可達成10：1以上
三、進口不銹鋼水用減壓閥工作原理
出口壓力作用在隔膜底面和閥瓣底面，當它超過彈簧設定值時，壓縮彈簧，使閥瓣關閉。只要下游無水流動，出口壓力將基本保持在設定值（其變化量僅為入口壓力變化量的8%）；當下游用水時，出口壓力下降，彈簧推開隔膜，打開減壓閥。水流連續流通一陣后，減壓閥的開啟產生自阻尼效應，使啟閉動作趨于平穩。
采用直接作用隔膜式結構，內部結構非常簡單，無卡阻，性能可靠，經久耐用。耐臟防水垢,不需過濾器,不需旁通管,配管極其簡單,能節省大量空間和配管成本。 出口壓力精密可調，在一般場合下，可以認為出口壓力不受進口壓力的影響（出口壓力的變化量是△P1的8%）。 極佳的水力特性，壓力損失小，減壓比可達成10：1以上。 可滿足多種減壓要求，特別適用于支管減壓系統。
四、進口不銹鋼水用減壓閥主要技術參數
類型 型號 公稱壓力
PN（MPa） 公稱通徑
DN（MPa） 連接形式 閥體材料 出口壓力（MPa） 工作℃
減壓閥 OKE 1.6-2.5
1.6-16.0 15~50
15-300 內螺紋
法蘭 不銹鋼 0.05~0.6（可調） 80
不銹鋼
五、進口不銹鋼水用減壓閥主要尺寸
公稱通徑DN（MPa） 尺寸（MM） 重量（Kg）
MM in A B C φG
15 1/2 31 60 76.5 59 1.2
20 3/4 31 75 76.5 73 1.2
25 1 36 88 85 81 1.4
32 11/4 42 93 98 81 1.5
40 11/2 45 98 102 85 2
50 2 54 130 117 98 2.65
六、進口不銹鋼減壓閥 部分業績
廈門水務局、三亞文華東方酒店、香格里拉臺南遠東國際大飯店、波士頓文華東方酒店、布拉格凱賓斯基、迪拜塔、上海漢華水處理公稱有限公司、臺北101大廈、上海環球金融中心、香港環球貿易廣場蒙特里凱悅度假村、曼谷香格里拉大酒店、波爾托羅曰凱賓斯基酒店、巴黎瑪?shù)氯R娜凱悅酒店、大連水務集團、布達佩斯卡爾維努斯凱賓斯基酒店、開能集團、湖南永清投資集團、廊坊多元水處理集團
Imported stainless steel water pressure reducing valve
I. Overview of imported stainless steel water pressure reducing valve
Brand: US Ouke OKE
Imported stainless steel water pressure reducing valve means that the valve body is made of stainless steel 304 or 316. It has the functions of acid and alkali resistance, corrosion resistance and rust resistance. It has good strength, strong toughness and high precision. The decompression regulator valve.
Imported stainless steel water pressure reducing valves are mainly used in various building water supply systems, fire protection systems, central air conditioning systems, heating systems, etc. It is used for branch pipe decompression, which can make the water supply pressure distribution more balanced, avoid partial water supply overpressure, and optimize the high-rise building water supply zone. The imported stainless steel water pressure reducing valve can replace the zone frequency variable frequency water pump. It can replace the district water pump in the fire water supply system and can be used in the household water supply system to protect all the faucets and other water appliances.
Second, the imported stainless steel water pressure reducing valve product features
1, stainless steel, wear-resistant, corrosion-resistant, rust-resistant
2, threaded connection, convenient connection, material saving, cost-effective
3, excellent hydraulic characteristics, low pressure loss
4, the pressure ratio is large, the pressure reduction ratio can reach 10:1 or more
Third, the working principle of imported stainless steel water pressure reducing valve
The outlet pressure acts on the bottom surface of the diaphragm and the underside of the valve flap. When it exceeds the spring setting, the spring is compressed to close the flap. As long as there is no downstream flow, the outlet pressure will remain at the set value (the amount of change is only 8% of the inlet pressure change); when the downstream water is used, the outlet pressure drops, the spring pushes open the diaphragm, and opens the pressure reducing valve. After the water flow is continuously circulated for a while, the opening of the pressure reducing valve produces a self-damping effect, which makes the opening and closing action tend to be stable.
With a direct acting diaphragm structure, the internal structure is very simple, no jamming, reliable performance and durability. It is resistant to dirt and scale, does not require a filter, does not require a bypass pipe, and the piping is extremely simple, saving a lot of space and piping costs. The outlet pressure is precisely adjustable. Under normal circumstances, the outlet pressure can be considered to be unaffected by the inlet pressure (the change in outlet pressure is 8% of ΔP1). Excellent hydraulic characteristics, low pressure loss, and a pressure reduction ratio of 10:1 or more. It can meet a variety of decompression requirements, especially for branch pipe decompression systems.
Fourth, the main technical parameters of imported stainless steel water pressure reducing valve
Type Model Nominal pressure
PN (MPa) nominal diameter
DN (MPa) Connection form Body material Outlet pressure (MPa) Working °C
Pressure reducing valve OKE 1.6-2.5
1.6-16.0 15~50
15-300 internal thread
Flange stainless steel 0.05~0.6 (adjustable) 80
stainless steel
V. Main dimensions of imported stainless steel water pressure reducing valve
Nominal diameter DN (MPa) Dimensions (MM) Weight (Kg)
MM in A B C φG
15 1/2 31 60 76.5 59 1.2
20 3/4 31 75 76.5 73 1.2
25 1 36 88 85 81 1.4
32 11/4 42 93 98 81 1.5
40 11/2 45 98 102 85 2
50 2 54 130 117 98 2.65
Sixth, imported stainless steel pressure reducing valve
Xiamen Water Affairs Bureau, Sanya Mandarin Oriental Hotel, Shangri-La's Far Eastern Plaza Hotel, Boston Mandarin Oriental Hotel, Prague Kempinski, Burj Khalifa, Shanghai Hanhua Water Treatment Co., Ltd., Taipei 101 Building, Shanghai World Financial Center, Hyatt Regency Hong Kong at Universal Plaza, Hong Kong, Shangri-La Hotel, Bangkok, Kempinski Hotel Portoro?, Hyatt Regency Paris Madeleine, Dalian Water Group, Kempinski Hotel Karvinus Budapest Kai Neng Group, Hunan Yongqing Investment Group, Langfang Multi-Water Treatment Group
|
