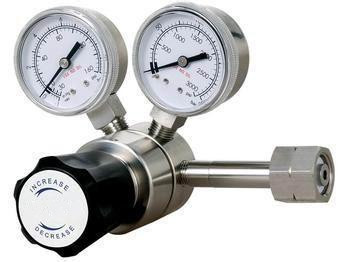

進口氣瓶減壓閥
一、進口氣瓶減壓閥概述
品牌：美國歐可OKE
進口氣瓶減壓閥，Cylinder pressure reducing valve，就是將氣體鋼瓶中的高壓氣體減為實驗及工況所需的低壓氣體壓力的減壓閥。采用活塞式減壓結構，輸出壓力穩定，主要用于石油化工、化纖、照明電器、熱處理、冶金、玻璃、食品、醫藥、電子、國防航天、航空等主導領域的氮氣鋼瓶，氧氣鋼瓶，氦氣鋼瓶，氫氣鋼瓶，氬氣鋼瓶，乙炔鋼瓶的出口減壓。
各種氣體一般都是貯存在專用的高壓氣體鋼瓶中，使用時通過減壓閥使氣體壓力降至實驗所需范圍，再經過其它控制閥門細調，使氣體輸入使用系統。由于氣瓶內壓力較高，而氣焊和氣割和使用點所需的壓力卻較小，所以需要用減壓器來把儲存在氣瓶內的較高壓力的氣體降為低壓氣體，并應保證所需的工作壓力自始至終保持穩定狀態。進口氣瓶減壓閥是將高壓氣體降為低壓氣體、并保持輸出氣體的壓力和流量穩定不變的調節裝置。
二、進口氣瓶減壓閥產品參數特征：
1、材質：
部位名稱 材質
母體 316L，Brass
上蓋 316L，Brass
膜片 316L
過濾網 316L（10μm）
閥座 PCTFE，PTFE，Vespel
彈簧 316L
閥芯頂桿 316L
2、適用范圍：
半導體制程，實驗室，氣相分析，測試儀表，石油化學工業，電廠設備
3、壓力特性參數：
最大輸入壓力 15Mpa，20Mpa，25Mpa 6000PSI,3000PSI,500PSI
輸出壓力 0-0.1Mpa，0-1Mpa，0-5Mpa，0-10Mpa，0-15Mpa 0～25,0～100,0～300,0-3000PSI
進口規格 G1/4,G1/2,G5/8,G1
出口規格 G1/4,G1/2,G5/8,G1，卡套
測試壓力： 1.5倍的最大輸入壓力
適用溫度 -40°F 至＋165°F（-40℃至＋74℃）
三、進口氣瓶減壓閥安裝說明
1、用下扳將減壓器進出氣接頭螺紋與氣瓶閥螺紋或高低壓側管路可靠的連接，一防止氣體泄漏。請勿轉動減壓器本體，應夾持本體，轉動螺母擰緊。
2、在安裝過程中，應確保減壓器進、出氣接頭與減壓器連接處不會發生松動，否則將會導致氣體泄漏，造成安全重大隱患。
3、徹底清除氣瓶和管路系統與減壓器連接位置處的油污、水及灰塵，一旦雜質進入氣體減壓器內，將會導致污染氣體，阻塞氣體通道或產生其他麻煩。
4、如果管路上的螺紋變形，無法與氣體減壓器順利地裝上時，就不要強行連接，否則會導致管路系統及氣體減壓器上的螺紋損壞，從而引起嚴重事故。
四、進口氣瓶減壓閥操作說明
1、在氣體進入減壓器之前，須確認已對管路系統（含減壓器）按要求進行吹掃或進行抽真空處理。
2、在氣體進入減壓器之前，須確認減壓器調壓把手處于完全旋松狀態（逆時針旋松調壓把手），否則供氣初期的瞬時壓力有可能損壞膜片，從而導致減壓器失效，嚴重時會危及人身安全。
3、緩慢打開減壓器入口側的供氣閥門，用肥皂水火專用檢測儀對減壓器各連接處進行檢漏。
▲ 注意：打開供氣閥門時，人體不得正對或背對減壓器。
4、順時針旋轉減壓器調壓把手，將壓力（或流量）調到所需要的刻度指示位置，并用肥皂水或?qū)Ｓ脵z測儀對減壓器各連接處進行檢漏。
▲ 注意：在減壓器供氣過程中，如果發現有任何異常的機械振動、噪音、卡住或壓力異常升高的現象，表明減壓器已存在故障，應立即停止使用。
五、美國歐可OKE進口氣瓶減壓閥使用業績
中國航天一院，哈爾濱工業大學，中國科學院物理研究所，蘭州空間技術物理研究院，中國人民解放軍空軍工程大學，江蘇天瑞儀器股份有限公司，長沙開元儀器股份有限公司，清華大學，美國德州儀器，復旦大學附屬華山醫院，山東豐龍高壓氣瓶有限公司，瓦萊羅能源公司，惠州市方舟工業氣體有限公司，江蘇通廣石化工業氣體有限責任公司，廣東冠昊生物科技股份有限公司，北京普析通用儀器有限責任公司等。
Imported gas cylinder pressure reducing valve
I. Overview of imported gas cylinder pressure reducing valve
Brand: US Ouke OKE
The Cylinder pressure reducing valve is a pressure reducing valve that reduces the high pressure gas in the gas cylinder to the low pressure gas pressure required for the experimental and working conditions. It adopts piston type decompression structure and stable output pressure. It is mainly used in nitrogen steel cylinders, oxygen cylinders, helium gas in the leading fields of petrochemical, chemical fiber, lighting, heat treatment, metallurgy, glass, food, medicine, electronics, defense aerospace, aviation, etc. Cylinder, hydrogen cylinder, argon cylinder, acetylene cylinder outlet decompression.
All kinds of gases are generally stored in special high-pressure gas cylinders. When used, the gas pressure is reduced to the required range by the pressure reducing valve, and then finely adjusted by other control valves to make the gas input into the system. Since the pressure inside the cylinder is high, and the pressure required for gas welding and gas cutting and use points is small, a pressure reducer is required to reduce the higher pressure gas stored in the cylinder to a low pressure gas, and it should be ensured. The required working pressure is stable from start to finish. The imported cylinder pressure reducing valve is an adjusting device that reduces the high pressure gas to a low pressure gas and keeps the pressure and flow rate of the output gas constant.
Second, the characteristics of imported gas cylinder pressure reducing valve product parameters:
1, material:
Part name material
Mother 316L, Brass
Cover 316L, Brass
Diaphragm 316L
Filter 316L (10μm)
Seat PCTFE, PTFE, Vespel
Spring 316L
Spool ejector 316L
2. Scope of application:
Semiconductor process, laboratory, gas phase analysis, test instrumentation, petrochemical industry, power plant equipment
3. Pressure characteristic parameters:
Maximum input pressure 15Mpa, 20Mpa, 25Mpa 6000PSI, 3000PSI, 500PSI
Output pressure 0-0.1Mpa, 0-1Mpa, 0-5Mpa, 0-10Mpa, 0-15Mpa 0～25, 0～100, 0～300, 0-3000PSI
Import specifications G1/4, G1/2, G5/8, G1
Export specifications G1/4, G1/2, G5/8, G1, card sets
Test pressure: 1.5 times the maximum input pressure
Applicable temperature -40°F to +165°F (-40°C to +74°C)
Third, the import cylinder pressure reducing valve installation instructions
1. Use the lower wrench to connect the pressure reducer into the gas outlet thread and the gas cylinder valve thread or the high and low pressure side pipeline to prevent gas leakage. Do not turn the pressure reducer body. Hold the body and turn the nut to tighten.
2. During the installation process, it should be ensured that the connection between the inlet and outlet of the pressure reducer and the pressure reducer will not loosen, otherwise it will cause gas leakage and cause serious safety hazards.
3. Thoroughly remove the oil, water and dust from the connection between the cylinder and the piping system and the pressure reducer. Once the impurities enter the gas pressure reducer, it will cause polluting gas, block the gas passage or cause other troubles.
4. If the thread on the pipeline is deformed and cannot be installed smoothly with the gas pressure reducer, do not forcibly connect it. Otherwise, the thread on the piping system and the gas pressure reducer will be damaged, causing serious accidents.
Fourth, the import cylinder pressure reducing valve operation instructions
1. Before the gas enters the pressure reducer, it must be confirmed that the piping system (including the pressure reducer) has been purged or vacuumed as required.
2. Before the gas enters the pressure reducer, make sure that the pressure regulator handle is fully loosened (turn the pressure knob counterclockwise), otherwise the instantaneous pressure at the initial stage of air supply may damage the diaphragm, resulting in decompression. Invalid device, in severe cases, endangers personal safety.
3. Slowly open the air supply valve on the inlet side of the pressure reducer, and use a special tester for soap and water to check the connection of the pressure reducer.
?▲ Note: When opening the air supply valve, the human body must not face or face the pressure reducer.
4. Turn the pressure reducer knob clockwise to adjust the pressure (or flow rate) to the desired scale indication position, and use soapy water or a special detector to check the connections of the pressure reducer.
▲ Note: If any abnormal mechanical vibration, noise, jamming or abnormal increase in pressure is found during the supply of the pressure reducer, it indicates that the pressure reducer has a fault and should be stopped immediately.
V. US Ou OKe imported gas cylinder pressure reducing valve use performance
China Aerospace First Institute, Harbin Institute of Technology, Institute of Physics, Chinese Academy of Sciences, Lanzhou Institute of Space Technology and Physics, People's Liberation Army Air Force Engineering University, Jiangsu Tianrui Instrument Co., Ltd., Changsha Kaiyuan Instrument Co., Ltd., Tsinghua University, Texas Instruments Huashan Hospital affiliated to Fudan University, Shandong Fenglong High Pressure Gas Bottle Co., Ltd., Valero Energy Company, Huizhou Fangzhou Industrial Gas Co., Ltd., Jiangsu Tongguang Petrochemical Industrial Gas Co., Ltd., Guangdong Guanhao Biotechnology Co., Ltd., Beijing General Analysis Instrument Co., Ltd., etc.
|
